RunAnywhere Swift SDK Part 4: Building a Voice Assistant with VAD

1┌─────────────────────────────────────────────────────────────────┐
2│                     Voice Assistant Pipeline                      │
3├─────────────────────────────────────────────────────────────────┤
4│                                                                   │
5│   ┌─────────┐    ┌─────────┐    ┌─────────┐    ┌─────────┐      │
6│   │  Record │ -> │   STT   │ -> │   LLM   │ -> │   TTS   │      │
7│   │  + VAD  │    │ Whisper │    │  LFM2   │    │  Piper  │      │
8│   └─────────┘    └─────────┘    └─────────┘    └─────────┘      │
9│       │                                              │           │
10│       │          Auto-stop when                      │           │
11│       └──────────  silence detected  ────────────────┘           │
12│                                                                   │
13└─────────────────────────────────────────────────────────────────┘

1class VoiceActivityDetector: ObservableObject {
2    // VAD thresholds (tune these for your environment)
3    let speechThreshold: Float = 0.02      // Level to detect speech start
4    let silenceThreshold: Float = 0.01     // Level to detect speech end
5    let silenceDuration: TimeInterval = 1.5 // Seconds of silence before auto-stop
6
7    // State
8    @Published var isSpeechDetected = false
9    @Published var currentLevel: Float = 0
10    private var silenceStartTime: Date?
11    private var vadTimer: Timer?
12
13    var onSpeechEnded: (() -> Void)?
14
15    func startMonitoring(levelProvider: @escaping () -> Float) {
16        silenceStartTime = nil
17        isSpeechDetected = false
18
19        vadTimer = Timer.scheduledTimer(withTimeInterval: 0.1, repeats: true) { [weak self] _ in
20            guard let self else { return }
21
22            let level = levelProvider()
23            self.currentLevel = level
24
25            // Detect speech start
26            if !self.isSpeechDetected && level > self.speechThreshold {
27                self.isSpeechDetected = true
28                self.silenceStartTime = nil
29                print("🎤 Speech detected")
30            }
31
32            // Detect speech end
33            if self.isSpeechDetected {
34                if level < self.silenceThreshold {
35                    if self.silenceStartTime == nil {
36                        self.silenceStartTime = Date()
37                    } else if Date().timeIntervalSince(self.silenceStartTime!) >= self.silenceDuration {
38                        print("🎤 Auto-stopping after silence")
39                        self.stopMonitoring()
40                        self.onSpeechEnded?()
41                    }
42                } else {
43                    self.silenceStartTime = nil // Speech resumed
44                }
45            }
46        }
47    }
48
49    func stopMonitoring() {
50        vadTimer?.invalidate()
51        vadTimer = nil
52    }
53
54    deinit {
55        stopMonitoring()  // Clean up timer if object is deallocated
56    }
57}

1// Add to AudioService from Part 2
2class AudioService: ObservableObject {
3    // ... existing properties ...
4
5    @Published var inputLevel: Float = 0  // Current audio amplitude (0.0 to 1.0)
6
7    // Update processAudioBuffer to calculate level:
8    private func processAudioBuffer(_ inputBuffer: AVAudioPCMBuffer) {
9        // Calculate RMS level for VAD
10        if let channelData = inputBuffer.floatChannelData?[0] {
11            let frameLength = Int(inputBuffer.frameLength)
12            var sum: Float = 0
13            for i in 0..<frameLength {
14                sum += channelData[i] * channelData[i]
15            }
16            let rms = sqrt(sum / Float(frameLength))
17            DispatchQueue.main.async {
18                self.inputLevel = rms
19            }
20        }
21
22        // ... rest of existing conversion code ...
23    }
24}

1enum PipelineError: Error {
2    case modelsNotLoaded
3    case recordingFailed
4}
5
6class VoicePipeline: ObservableObject {
7    @Published var state: PipelineState = .idle
8    @Published var transcribedText = ""
9    @Published var responseText = ""
10    @Published var errorMessage: String?
11
12    private let audioService: AudioService
13    private let ttsPlayer = TTSPlayer()  // From Part 3
14    private let vad = VoiceActivityDetector()
15
16    enum PipelineState {
17        case idle
18        case listening
19        case transcribing
20        case thinking
21        case speaking
22    }
23
24    init(audioService: AudioService) {
25        self.audioService = audioService
26    }
27
28    func start() async throws {
29        guard state == .idle else { return }
30
31        // Ensure all models are loaded
32        guard await isReady() else {
33            throw PipelineError.modelsNotLoaded
34        }
35
36        await MainActor.run {
37            state = .listening
38            transcribedText = ""
39            responseText = ""
40            errorMessage = nil
41        }
42
43        // Start recording
44        try audioService.startRecording()
45
46        // Start VAD monitoring
47        vad.onSpeechEnded = { [weak self] in
48            Task { await self?.processRecording() }
49        }
50        vad.startMonitoring { [weak self] in
51            self?.audioService.inputLevel ?? 0
52        }
53    }
54
55    private func processRecording() async {
56        // 1. Stop recording and get audio
57        let audioData = audioService.stopRecording()
58        vad.stopMonitoring()
59
60        // 2. Transcribe
61        await MainActor.run { state = .transcribing }
62
63        do {
64            let text = try await RunAnywhere.transcribe(audioData)
65            await MainActor.run { transcribedText = text }
66
67            guard !text.trimmingCharacters(in: .whitespacesAndNewlines).isEmpty else {
68                await MainActor.run { state = .idle }
69                return
70            }
71
72            // 3. Generate LLM response
73            await MainActor.run { state = .thinking }
74
75            let prompt = """
76            You are a helpful voice assistant. Keep responses SHORT (2-3 sentences max).
77            Be conversational and friendly.
78
79            User: \(text)
80            Assistant:
81            """
82
83            let options = LLMGenerationOptions(maxTokens: 100, temperature: 0.7)
84            let result = try await RunAnywhere.generateStream(prompt, options: options)
85
86            var response = ""
87            for try await token in result.stream {
88                response += token
89                await MainActor.run { responseText = response }
90            }
91
92            // 4. Speak the response
93            await MainActor.run { state = .speaking }
94
95            let ttsOptions = TTSOptions(rate: 1.0, pitch: 1.0, volume: 1.0)
96            let speech = try await RunAnywhere.synthesize(response, options: ttsOptions)
97            try ttsPlayer.playTTSAudio(speech.audioData)
98
99            // Wait for audio to finish
100            try await Task.sleep(nanoseconds: UInt64(speech.duration * 1_000_000_000))
101
102        } catch {
103            print("Pipeline error: \(error)")
104            await MainActor.run { errorMessage = error.localizedDescription }
105        }
106
107        await MainActor.run { state = .idle }
108    }
109
110    private func isReady() async -> Bool {
111        await RunAnywhere.isModelLoaded &&
112        await RunAnywhere.isSTTModelLoaded &&
113        await RunAnywhere.isTTSVoiceLoaded
114    }
115}

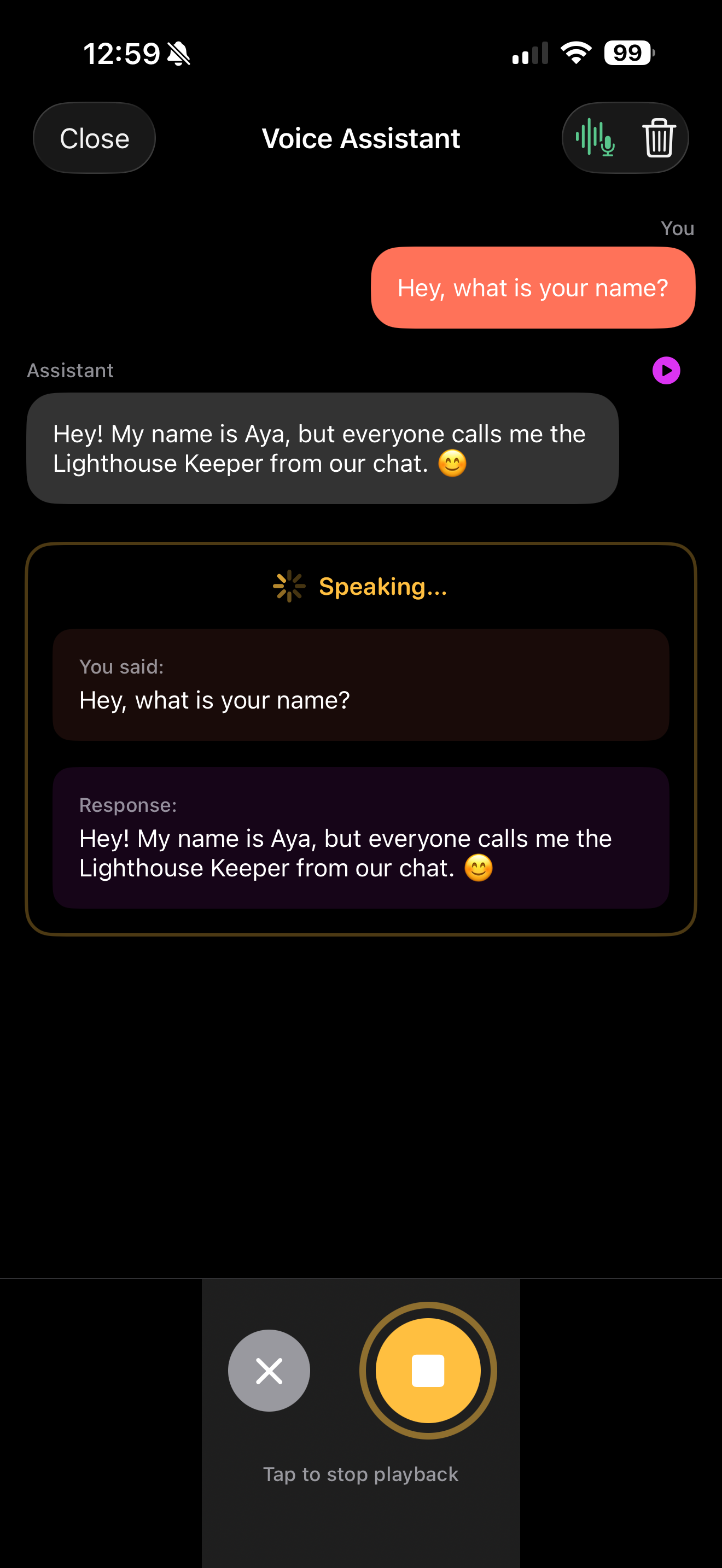

1struct VoicePipelineView: View {
2    @StateObject private var pipeline: VoicePipeline
3
4    init(audioService: AudioService) {
5        _pipeline = StateObject(wrappedValue: VoicePipeline(audioService: audioService))
6    }
7
8    var body: some View {
9        VStack(spacing: 32) {
10            // State indicator (simple inline version)
11            HStack {
12                Circle()
13                    .fill(stateColor)
14                    .frame(width: 12, height: 12)
15                Text(stateDescription)
16                    .font(.headline)
17            }
18
19            // Error message
20            if let error = pipeline.errorMessage {
21                Text(error)
22                    .font(.caption)
23                    .foregroundColor(.red)
24                    .padding()
25                    .background(Color.red.opacity(0.1))
26                    .cornerRadius(8)
27            }
28
29            // Transcription
30            if !pipeline.transcribedText.isEmpty {
31                VStack(alignment: .leading, spacing: 8) {
32                    Text("You said:")
33                        .font(.caption)
34                        .foregroundColor(.secondary)
35                    Text(pipeline.transcribedText)
36                        .font(.body)
37                }
38                .frame(maxWidth: .infinity, alignment: .leading)
39                .padding()
40                .background(Color.blue.opacity(0.1))
41                .cornerRadius(12)
42            }
43
44            // Response
45            if !pipeline.responseText.isEmpty {
46                VStack(alignment: .leading, spacing: 8) {
47                    Text("Assistant:")
48                        .font(.caption)
49                        .foregroundColor(.secondary)
50                    Text(pipeline.responseText)
51                        .font(.body)
52                }
53                .frame(maxWidth: .infinity, alignment: .leading)
54                .padding()
55                .background(Color.green.opacity(0.1))
56                .cornerRadius(12)
57            }
58
59            Spacer()
60
61            // Main button
62            Button(action: togglePipeline) {
63                Circle()
64                    .fill(pipeline.state == .idle ? Color.blue : Color.red)
65                    .frame(width: 80, height: 80)
66                    .overlay {
67                        Image(systemName: pipeline.state == .idle ? "mic.fill" : "stop.fill")
68                            .font(.title)
69                            .foregroundColor(.white)
70                    }
71            }
72            .disabled(pipeline.state != .idle && pipeline.state != .listening)
73
74            Text(stateHint)
75                .font(.caption)
76                .foregroundColor(.secondary)
77        }
78        .padding()
79    }
80
81    private var stateColor: Color {
82        switch pipeline.state {
83        case .idle: return .gray
84        case .listening: return .red
85        case .transcribing, .thinking: return .orange
86        case .speaking: return .green
87        }
88    }
89
90    private var stateDescription: String {
91        switch pipeline.state {
92        case .idle: return "Ready"
93        case .listening: return "Listening..."
94        case .transcribing: return "Transcribing..."
95        case .thinking: return "Thinking..."
96        case .speaking: return "Speaking..."
97        }
98    }
99
100    private var stateHint: String {
101        switch pipeline.state {
102        case .idle: return "Tap to start"
103        case .listening: return "Stops automatically when you pause"
104        case .transcribing: return "Converting speech to text"
105        case .thinking: return "Generating response"
106        case .speaking: return "Playing audio response"
107        }
108    }
109
110    private func togglePipeline() {
111        if pipeline.state == .idle {
112            Task {
113                do {
114                    try await pipeline.start()
115                } catch PipelineError.modelsNotLoaded {
116                    pipeline.errorMessage = "Models not loaded. Please load LLM, STT, and TTS first."
117                } catch {
118                    pipeline.errorMessage = error.localizedDescription
119                }
120            }
121        }
122    }
123}

1// Download and load all models sequentially
2await modelService.downloadAndLoadLLM()
3await modelService.downloadAndLoadSTT()
4await modelService.downloadAndLoadTTS()

1// Unload when not needed (no parameters)
2try await RunAnywhere.unloadModel()
3try await RunAnywhere.unloadSTTModel()
4try await RunAnywhere.unloadTTSVoice()

1var isVoiceAgentReady: Bool {
2    isLLMLoaded && isSTTLoaded && isTTSLoaded
3}

1func startPipeline() async {
2    guard state == .idle else { return }  // Prevent double-starts
3    // ...
4}

1let speechThreshold: Float = 0.05   // Higher for noisy environments
2let silenceThreshold: Float = 0.02  // Higher for noisy environments
3let silenceDuration: TimeInterval = 2.0  // Longer pause tolerance
